APO-Macro-Summarit-S 120 f/2.5

The perfect portrait lens
Material number

Much more than just a portrait lens

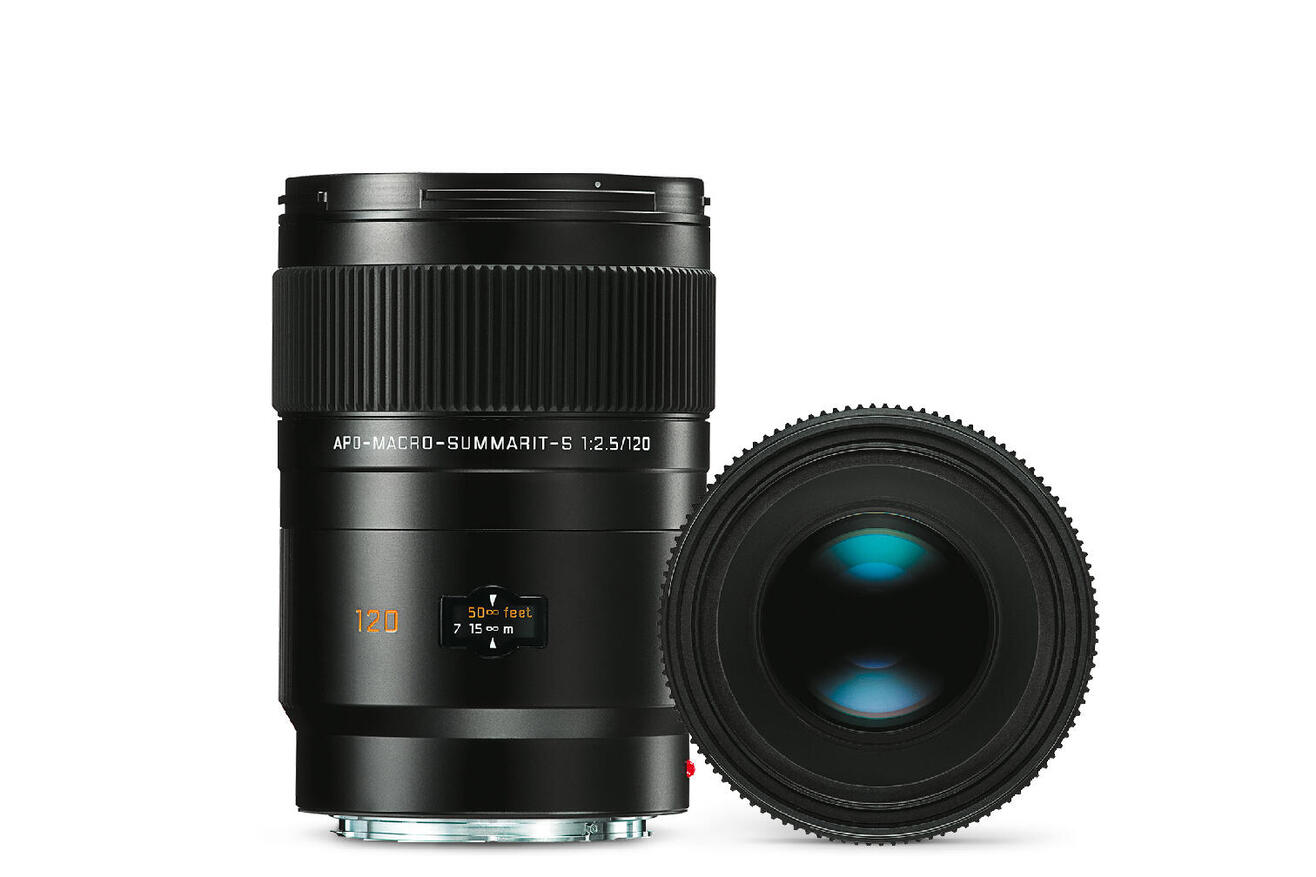

The APO-Macro-Summarit-S 120 f/2.5 (CS) (96 mm in 35 mm format) has a true dual function. Firstly, it is a macro lens for closeup photography up to a reproduction ratio of 1:2, and secondly, it is a fast telephoto lens with an unusually wide maximum aperture of f/2.5.

At the same time, it offers such astounding imaging qualities at maximum aperture throughout its entire focusing range that stopping down really only increases the depth of field but cannot further increase its superior contrast rendition. This brings countless fascinating options for exploring the creative opportunities offered by selective sharpness. The alternative CS version with a central shutter further increases its enormous range of potential uses.

The highlights

From close-up to telephoto photography

  • From close-ups to tele-photography
  • Real double benefit: On the one hand it is a macro lens for close-up images up to 1:2 scale, on the other hand it is a fast telephoto lens.

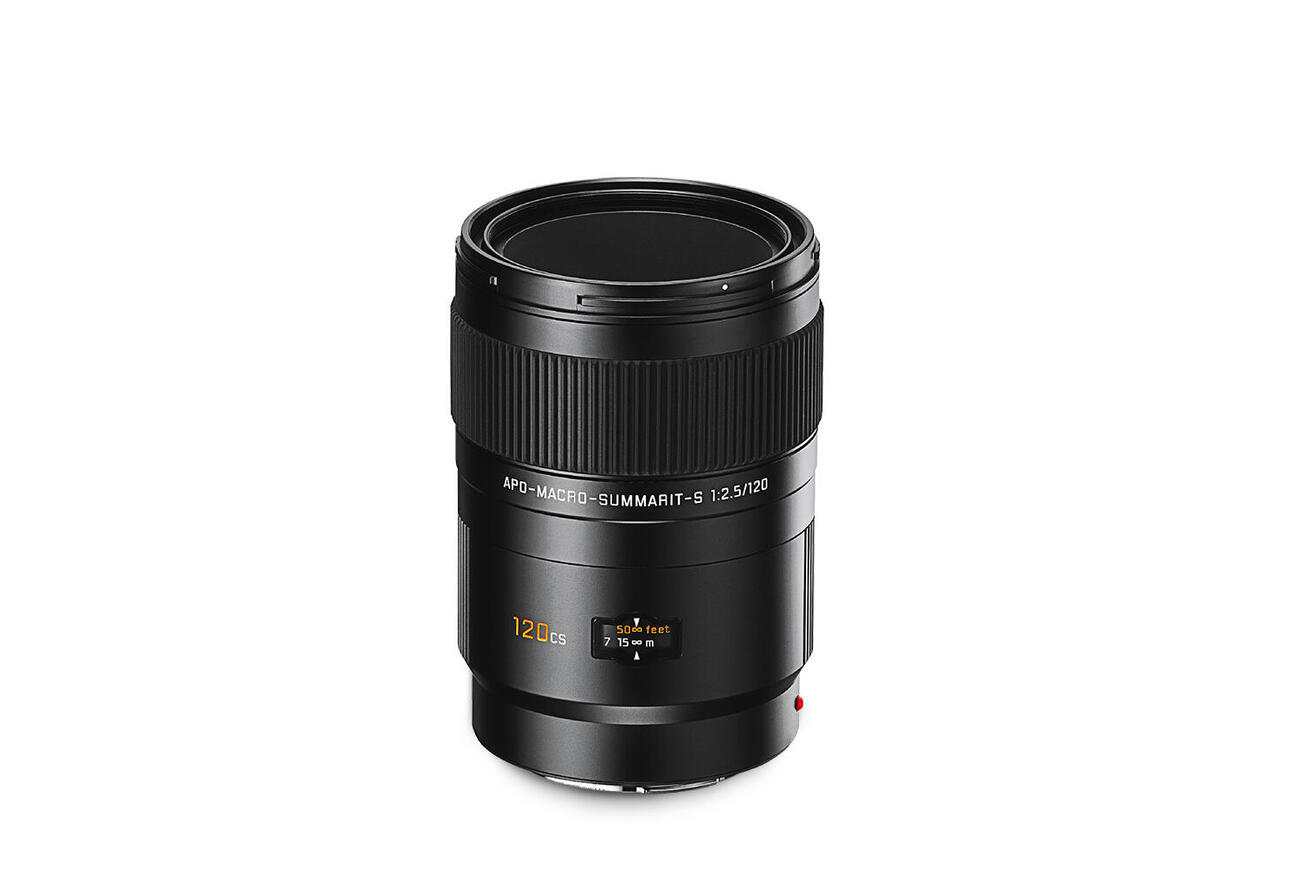

  • Innovative central shutter for maximum design freedom when using additional light
  • Excellent imaging performance over the entire range and at all aperture settings
  • Extremely fast
  • Creative use of sharpness and blurring for the plastic extraction of motif details
  • Best image quality up to the edges due to aspherical optics
  • Weather- and dust-sealed lens

Technical Details

The lens design comprises nine elements in seven groups, and its frontgroup focusing with a floating element guarantees outstanding contrast performance at even the shortest focusing distances of the macro domain. Three elements are made of glasses with anomalous partial dispersion and two of these have extremely low dispersion, which minimizes monochromatic aberrations.

The sophisticated apochromatic correction enables perfect resolution of even high-contrast finedetail structures.


Modulation Transfer Function

The MTF is indicated both at full aperture and at f/5.6 and f/8 at long taking distances (infinity).

Shown is the contrast in percentage for 5, 10, 20 and 40 lp/mm across the height of the 35mm film format, for tangential (dotted line) and sagittal (solid line) structures, in white light. The 5 and 10 lp/mm will give an indication regarding the contrast ratio for large object structures. The 20 and 40 lp/mm records the resolution of finer and finest object structures.


Distortion & vignetting

Distortion is the deviation of the real image height (in the picture) from the ideal image height. The relative distortion is the percentage deviation. The ideal image height results from the object height and the magnification. The image height of 27.04mm is the radial distance between the edge and the middle of the image field for the format 30mm×45mm.

The graph of the effective distortion illustrates the appearance of straight horizontal and vertical lines in the picture.
Vignetting is a continous decrease of the illumination to the edges of the image field. The graph shows the percentage loss of illumination over the image height. 100% means no vignetting.

Technical Data Files
Leica APO Macro Summarit-S 120 mm f/2.5 (CS)
pdf (552.61 KB)

Technical data

Order no. 11070 | CS: 11052
Image angle (diagonal, horizontal, vertical) approx. 25° / 21° / 24°, corresponds to approx. 96 mm focal length in 35 mm format
Optical design
Number of lenses / groups 9 / 7
Entrance pupil infinity: 11.39 mm (in front of bayonet in incident light direction)
  close focus limit: 77.23 mm (in front of bayonet in incident light direction)
Focusing range 0.57 m to ∞
Distance setting
Scales Combined meter/feet graduation
Smallest object field 64 mm × 95 mm
Largest reproduction ratio 1 : 2.1
Setting / Function Electronically controlled diaphragm, set using setting / selection dial on camera, including half values
Lowest value 22
Bayonet Leica S bayonet
Filter mount / Lens hood External bayonet for lens hood (included), internal thread for E72 filter, filter mount does not rotate
Dimensions and weight
Length to bayonet mount approx. 128 / 202 mm (without / with lens hood)
Largest diameter approx. 91 / 103 mm (without / with lens hood)
Weight approx. 1135 / 1205 g (without / with central shutter)
