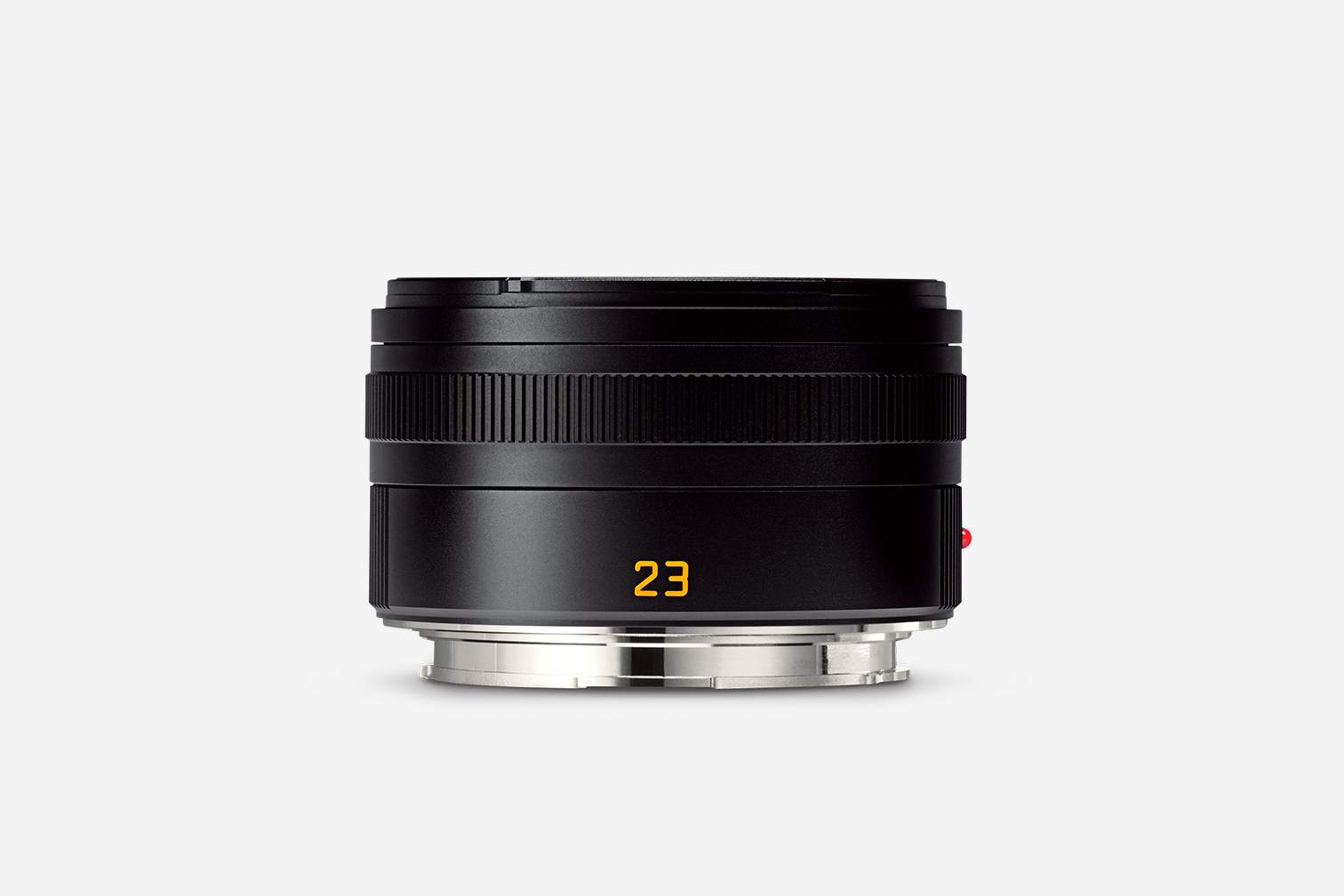

Summicron-TL 23 f/2 ASPH.
Created to create icons of photography
For unforgettable pictures
The Summicron-TL has a focal length of 23 mm – in terms of 35 mm format, this corresponds to 35 mm – the focal length of the legendary Leica lenses for reportage photography. A truly classical focal length that lets you realise the pictures you see in your mind’s eye and exploit the potential of creative expression! Just as legendary is the maximum aperture of f/2, with which you can bring to life the unmistakeable Leica bokeh. And create your own iconic photos.
Proofs of performance
Technical Data Files
Leica Summicron-T 23 mm f/2 ASPH.
English
pdf
1.78 MB
Leica Summicron-TL 23 mm f/2 ASPH.
English
pdf
321.97 KB
Technical Data
| Lens | Summicron-TL 23 f/2 ASPH. |
| Order no. | 11 081 |
| Compatible cameras | All Leica cameras with Leica L bayonet |
| Field angle (diagonal, horizontal, vertical) | Approx. 64°, 53°, 35°, corresponding to around 35 mm focal length in 35 mm format |
| Optical design | Number of lenses/groups: 9/6 Aspherical surfaces: 2 Position of entrance pupil at infinity: -22.7 mm |
| Distance setting | Setting/Function: Electronically controlled Mode selectable using camera menu: Automatic (AF) or manual (M), in AF mode manual override possible at any times with setting dial Focusing range: 0.35 m to ∞ Smallest object field/largest scale: approx. 295 x 196 mm/1:12.6 |
| Aperture | Setting/Function: Electronically controlled, adjustment using dial on camera, third values also available Lowest value: 16 |
| Bajonet fitting | Leica L bayonet |
| Filter mount/ Lens hood | External bayonet fitting for lens hood (included), internal thread for E52 filters, filter mount does not rotate |
| Finish | Black anodized |
| Dimensions and Weight | Length to bayonet mount: approx. 37/69 mm (without/with lens hood) Largest diameter: approx. 63/73 mm (without/with lens hood) Weight: approx. 154/186 g (without/with lens hood) Page |
Place your order now:
Summicron-TL 23 f/2 ASPH.
The fulfillment of photographic dreams is often only a click away: make the decision now, and raise your art of photography to an entirely new level.
L-Mount
A new era of creative freedom
The L-Mount marks the start of a new era of lens compatibility without compromise. Never before has one lens mount standard allowed for an almost limitless array of options in combining different interchangeable lenses with cameras featuring different sensor formats.
With the alliance between Leica Camera, Panasonic and Sigma, a combined 250 years of experience in the field of lens and camera construction will be consolidated in one platform. For the photographer, this opens up the chance to compile endless variations of camera-lens combinations from the extensive product portfolios of all three manufacturers, and so continually find the best solution for any photographic situation.
