Proofs of performance

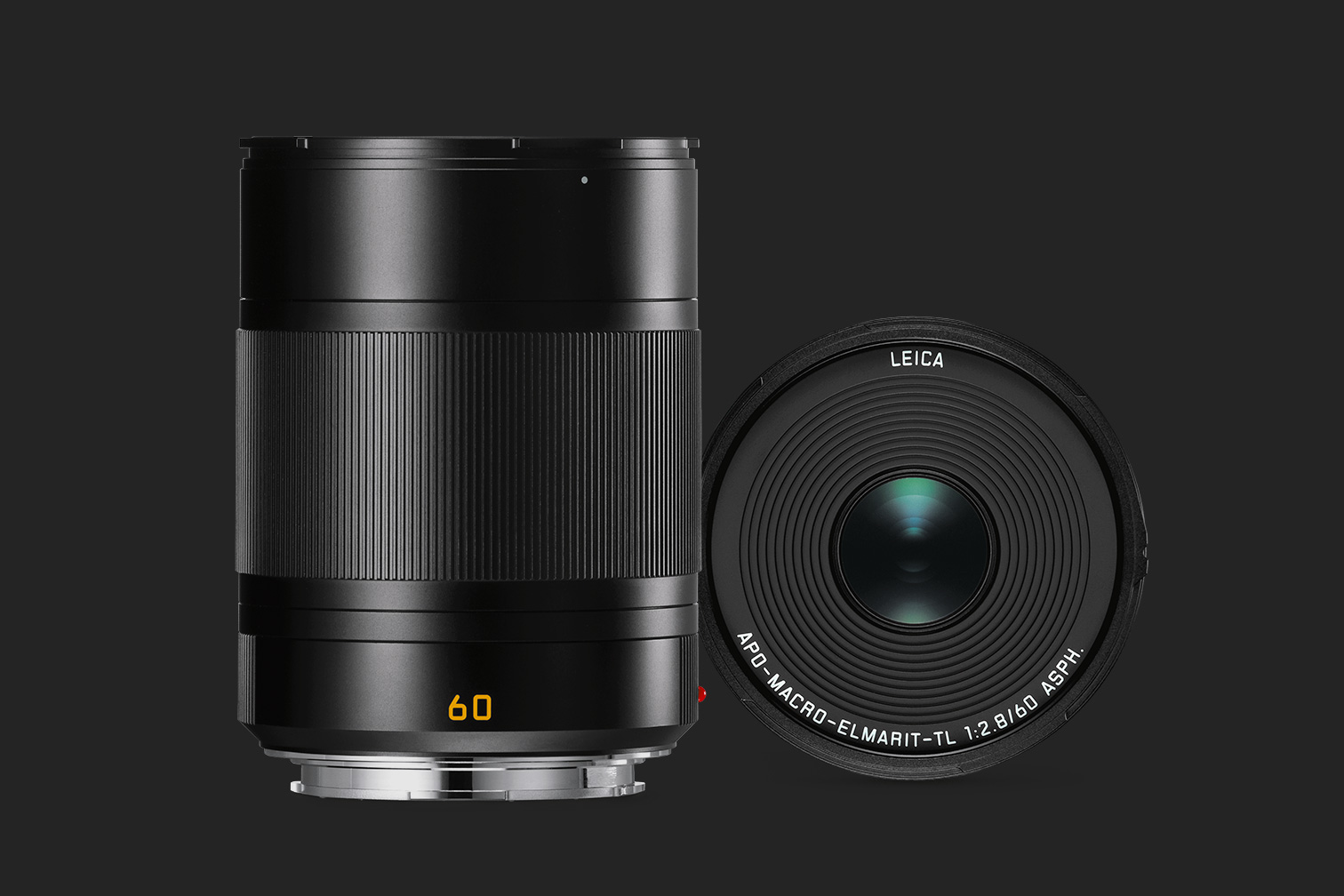

|Lens||APO-Macro-Elmarit-TL 60 f/2.8 ASPH.|
|Order number||Black anodized: 11 086
Silver anodized: 11 087
|Compatible cameras||All Leica cameras with Leica L bayonet|
|Angle of view (diagonal, horizontal, vertical)||For 35 mm (24 x 36 mm): 27°/22°/15°; equivalent focal length of approx. 90 mm|
|Optical design||Number of lenses/groups: 10/9
Aspherical surfaces: 4
Position of entrance pupil in front of the bayonet: 64.4 mm
|Distance setting||Setting/Function: Electronically controlled
Mode selectable using camera menu: Automatic (AF) or manual (M), in AF mode manual override possible
at any times with setting dial
Focusing range: 0.16 m to ∞
Smallest object field/largest reproduction ratio: 24 x16 mm/1:1
Electronically controlled, adjustment using dial on camera, third values also available
Smallest aperture: f/32
|Bayonet||Leica L bayonet|
|Filter thread/ Lens hood||Internal thread for E60 filters, filter mount does not rotate,
external bayonet mount for lens hood (supplied)
|Dimensions and weight (without/with lens hood)||Length: approx. 89/134 mm
Largest diameter: approx. 68/81 mm
Weight: approx. 320/387 g
