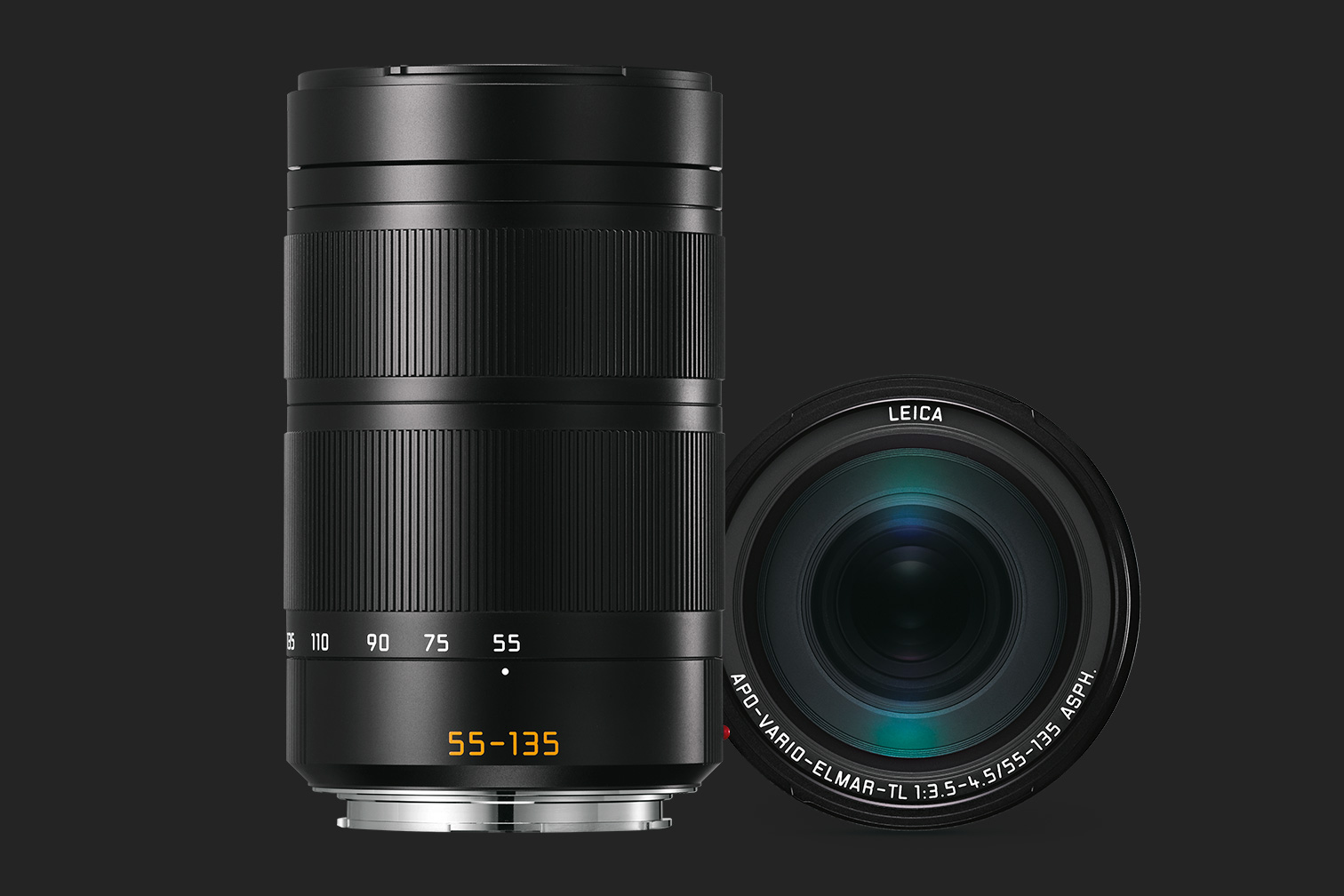

APO-Vario-Elmar-TL 55-135 f/3.5-4.5 ASPH.
Высокопроизводительный теле-фото зум объективTechnical Data
Lens | APO-Vario-Elmar-TL 55–135 f/3.5–4.5 ASPH. |
Order no. | 11 083 |
Compatible cameras | All Leica cameras with Leica L bayonet |
Field angle (diagonal, horizontal, vertical) | At 55 mm: approx. 28°, 24°, 16°, at 200 mm: approx. 12 °, 10°, 7°, corresponding to around approx. 80 - 200 mm focal length in 35 mm format. |
Optical design | Number of lenses/groups: 12/10. Aspherical surfaces: 1. Position of entrance pupil at infinity: at 55 mm: -54.4 mm, at 200 mm: -27.3 mm. |
Distance setting | Setting/Function: Electronically controlled. Mode selectable using camera menu: Automatic (AF) or manual (M), in AF mode manual override possible at any times with setting dial. Focusing range: 1 m to ∞. Smallest object field/largest scale: at 55 mm: approx. 403 x 268 mm/f/17.1, at 135 mm: approx. 188 x 125 mm/f/8.0. |
Aperture | Setting/Function: Electronically controlled, adjustment using dial on camera, third values also available. Lowest value: 16. |
Bajonet fitting | Leica L bayonet. |
Filter mount/ Lens hood | External bayonet fitting for lens hood (included), internal thread for E60 filters, filter mount does not rotate. |
Finish | Black anodized. |
Dimensions and Weight | Length to bayonet mount: approx. 110/165 mm (without/with lens hood). Largest diameter: approx. 68/81 mm (without/with lens hood). Weight: approx. 500/547 g (without/with lens hood). |

Place your order now:
APO-Vario-Elmar-TL 55–135 f/3.5–4.5 ASPH.
The fulfillment of photographic dreams is often only a click away: make the decision now, and raise your art of photography to an entirely new level.

L-Mount
Новая эра свободы творчества
Байонет L-Mount открывает новую эру совместимости объективов, которая избавит фотолюбителей от мучительных компромиссов. Раньше стандартный байонет объектива не позволял использовать все разнообразие возможных комбинаций различных моделей объективов и фотоаппаратов с матрицами разного формата.
Однако уже сегодня совместными усилиями представители фотоиндустрии Leica Camera, Panasonic и Sigma реализуют свой совокупный 250-летний опыт в сфере производства фотооптики и фотокамер для создания единой платформы для фотосистем. Для фотографов это означает бесконечные возможности комбинирования камер и объективов из широкого ассортимента всех трех производителей, чтобы подобрать наилучшее решение для любых условий съемки.
